Extensive range of Aquatherm red pipe and fittings for fire sprinkler system installations
The system is based on a fibre reinforced polypropylene pipe (faser composite pipe) produced in a multi-layer extrusion process. The material fusiolen® PP-R FS, used for the pipe production, is a plastic whose properties are designed for the special demands of the fields of application.
Benefits:
- No sealants or adhesives
- A visible external weld bead
- Auditable joints – contractor/client/insurer
- No dry fitting – no bursts
- No clogging of sprinkler heads with adhesives/sealants/corrosive material
- LPCB/FM/VDS Approved
- Fibre reinforced Polypropylene
- Multi-layer extrusion process

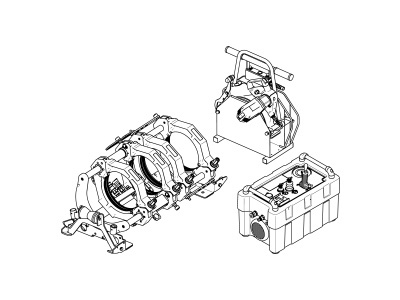

- Connected by fusion welding
Handling:
Transport and storage
Aquatherm Red pipes can be stored in all outsidetemperatures. Pipes should be stored and transported flat and fully supported along their length. Bending pressures are to be avoided. High impact should be avoided at extremely low temperatures. Although Aquatherm Red pipes are extremely robust, it is recommended to treat the material always with care.
UV resistance
Pipes from fusiolen® PP-R FS should not be installed (without protection) where subject to UV-radiation. All Aquatherm Red pipes and fittings are supplied in UVprotected packaging to bridge transport and assembly time. Ultraviolet rays have an influence on all high polymeric plastics. Hence, pipes should not be stored unprotected outside for a long time. The maximum storage time is (outside) 6 months.
Fire bulkheading
All fire prevention systems which can prove equivalent licensing are suited for the Aquatherm Red Pipe system.
Procedures for additional repair
Cut out damaged / leaking section and replace as for a new installation or repair with pipe repair stick.
Chemical resistance
On account of the special material qualities Aquatherm Red pipes and fittings provide extensive chemical resistance. Aquatherm Red pipe - transition connections and elements with brass inserts are not suitable for all media. The compatibility should be asked at Aquatherm with media deviating from water.
Pipe friction loss

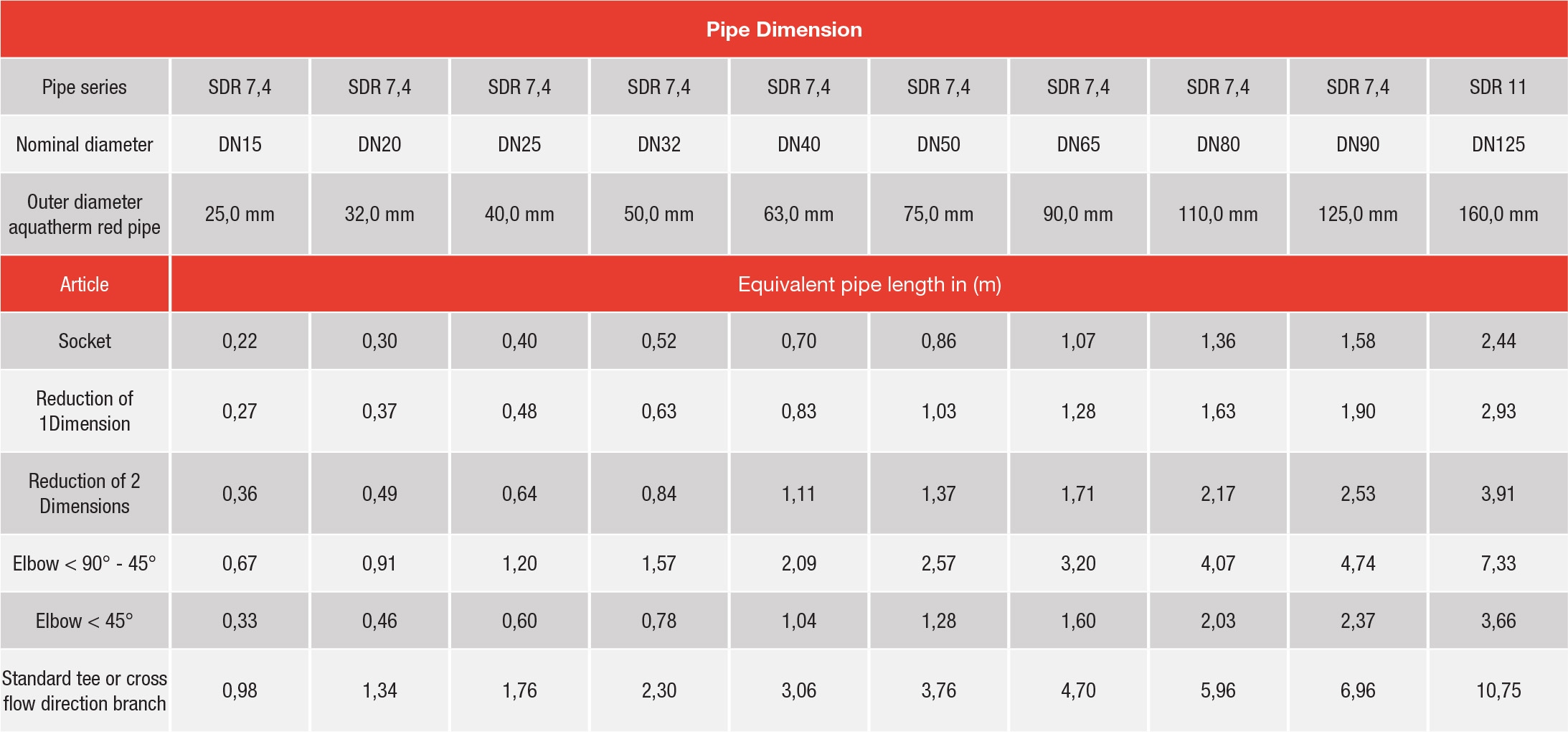

The pressure loss caused by friction is to be calculated hydraulically with the Hazen-Williams-formula. The value to be used for C is 150, applicable for calculations of sprinkler installations and water supply. Equivalent lengths for the Aquatherm Red pipe sprinkler pipe system. The equivalent lengths of transition pieces, threaded connections and tees (flow direction: straight) can be calculated with the socket values.
